Product Details
＋

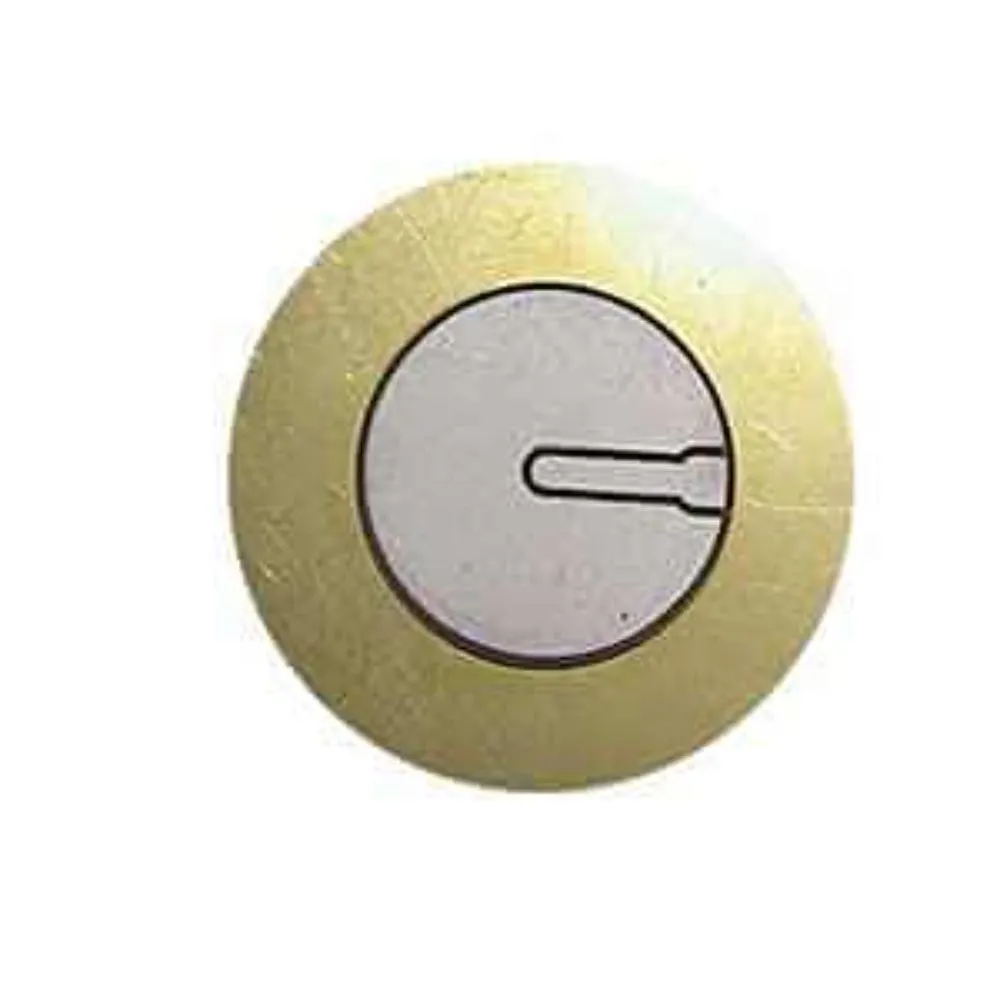

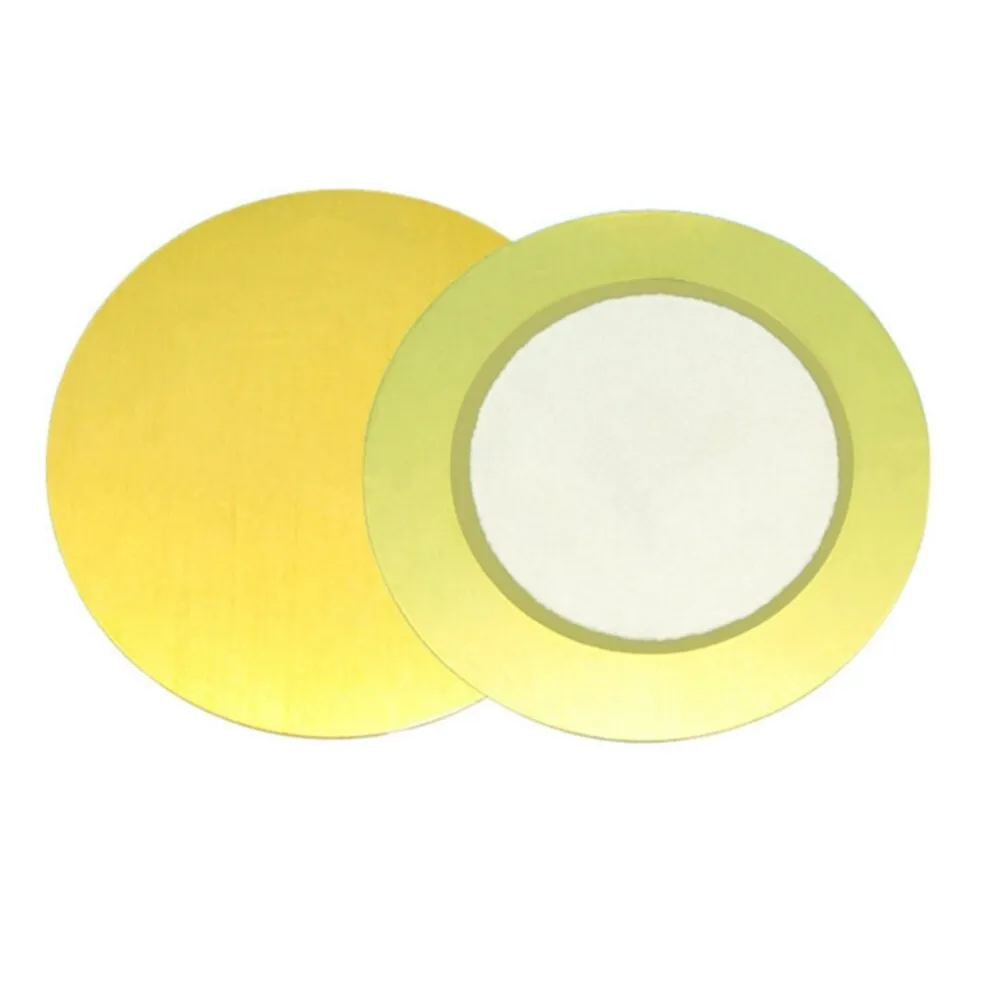

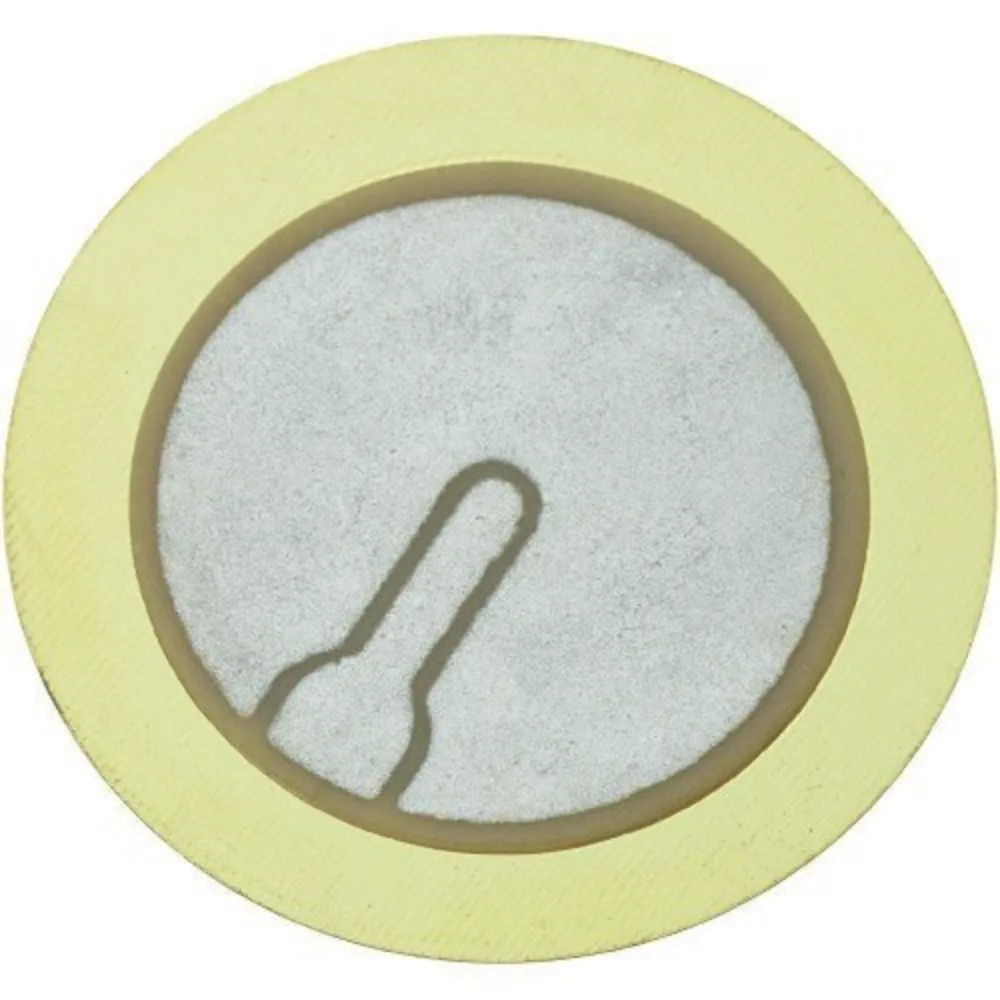

The Piezoelectric Transducer Sensor with a 27mm inner circle and 20mm diameter is a specialized device that converts mechanical energy into electrical signals through the piezoelectric effect. Its unique design with specific dimensions makes it well-suited for applications requiring medium-sized sensors with precise sensitivity.
High Sensitivity: It offers high sensitivity to mechanical stimuli, enabling accurate measurement and detection of pressure, vibrations, or impacts.
Wide Frequency Response: The sensor covers a broad frequency range, making it suitable for detecting both low-frequency vibrations and high-frequency oscillations.
Compact Design: With a 20mm diameter and a 27mm inner circle, the sensor's compact size allows for easy integration into various electronic systems and devices.
Fast Response Time: It boasts a rapid response time, providing real-time feedback on changes in mechanical input.
Robust Construction: Designed with durable materials, the sensor can withstand mechanical stresses and harsh environmental conditions.
Impact Detection: Employed in impact sensors for detecting impacts or collisions in automotive safety systems, industrial equipment, and sports equipment.
Features:
Piezoelectric Effect: The sensor operates on the principle of the piezoelectric effect, where it generates an electric charge when subjected to mechanical stress or deformation.High Sensitivity: It offers high sensitivity to mechanical stimuli, enabling accurate measurement and detection of pressure, vibrations, or impacts.
Wide Frequency Response: The sensor covers a broad frequency range, making it suitable for detecting both low-frequency vibrations and high-frequency oscillations.
Compact Design: With a 20mm diameter and a 27mm inner circle, the sensor's compact size allows for easy integration into various electronic systems and devices.
Fast Response Time: It boasts a rapid response time, providing real-time feedback on changes in mechanical input.
Robust Construction: Designed with durable materials, the sensor can withstand mechanical stresses and harsh environmental conditions.
Applications:
Vibration Monitoring: Used in structural health monitoring systems to detect and analyze vibrations in buildings, machinery, bridges, and other structures.Impact Detection: Employed in impact sensors for detecting impacts or collisions in automotive safety systems, industrial equipment, and sports equipment.
Features
- Clear sound
- Ultra-thin and lightweight
- No contacts: therefore, no noise and highly reliable
- Low power consumption for voltage type
- Excellent accessory for acoustic instrument pickups, stompboxes, contact mics, etc
- Piezoelectric buzzer film. Can be fitted to used acoustic guitars, CBGs, drums, etc
- All the discs are made from selected copper, ensuring excellent conductivity and long-lasting use
Technical Details
- Operating Temperature: -20°C ~ 70°C
- Storage Temperature: -30-80°C
- Plate Diameter: 27 mm
- Element Diameter: ~11mm
- Plate Thickness: 0.42mm
- Plate Material: Brass Resonant
- Resonant Frequency (kHz): 10 /-0.5KHZ
- Resonant Impedance: 100R MAX
- Static Capacitance: 8000pf /-30%
- Sound pressure level: 85DB 10cm
- Input voltage: 30vp-p max
Applications
- Used in Medical Diagnostics
- Electric lighter
- Microphones
Package Includes
- 1 x Piezoelectric Transducer Sensor 27mm Inner Circle 20mm
