Specs

Model:

RTSX100i

Item #:

170205

American:

10 - 100 lbf.in

S.I.:

113 - 1130 cN.m

Metric:

11.5 - 115 kgf.cm

Input Drive:

1/4 F/Sq

Output Drive:

1/4 M/Sq

Tool Weight:

0.597 lbs.

Tool Length:

Tool Width:

1.1

Tool Height:

Cal Cert Options Data Set:

Supplied with a Free ISO 17025 Certification of Calibration

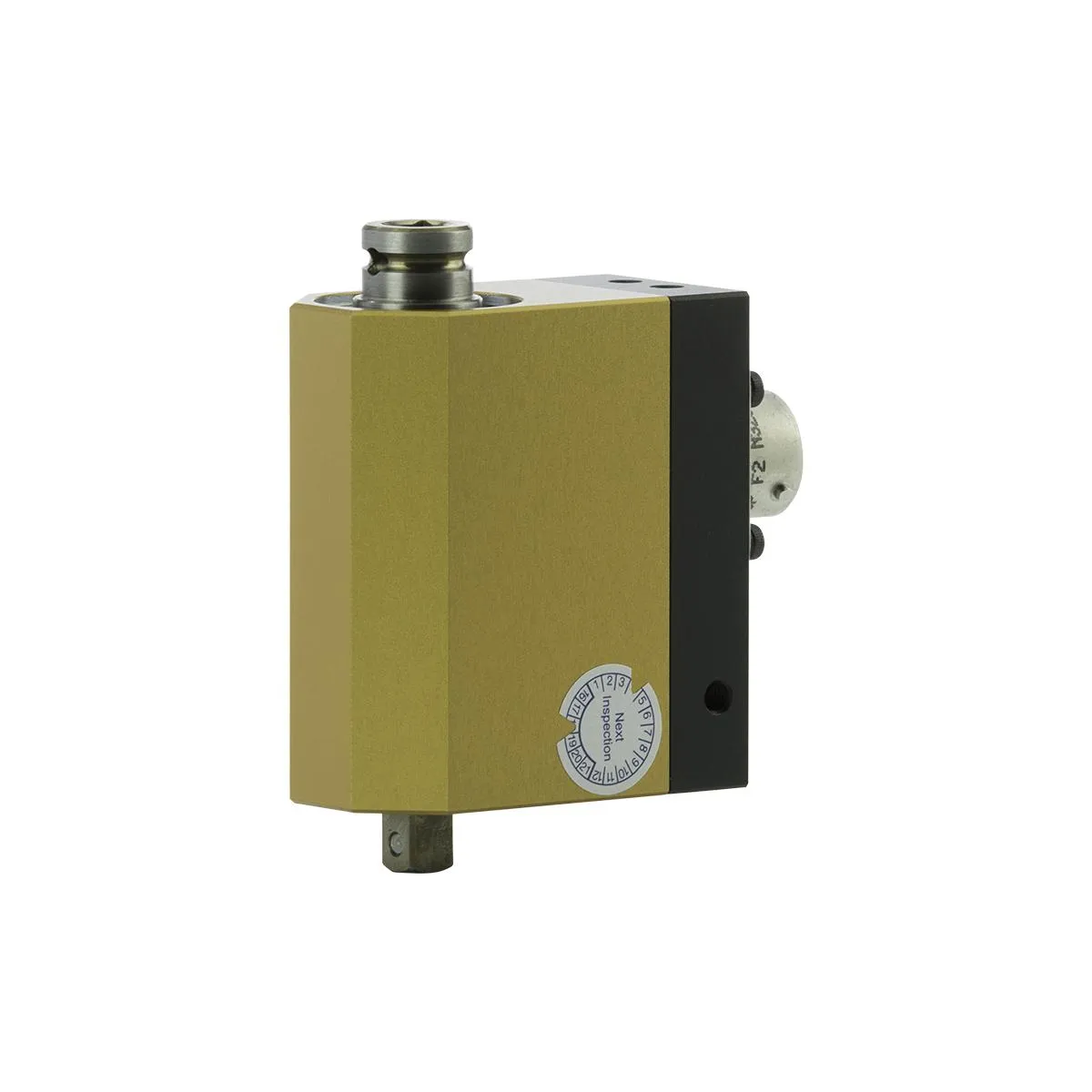

The Rotary Torque Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to fastener or bolt.

Accuracy ± .25% of full scale

Use torque sensor with most hand tools, power tools or rotational measurement applications.
Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.
Features ARC II technology, an instant auto-recognition system of the RTSX connected to the or .
Bi-directional.

This is the stand alone accuracy statement for the RTSX torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer ( or ).

WARNING! Not recommended for impact wrenches.
