Product Details
＋
Applications

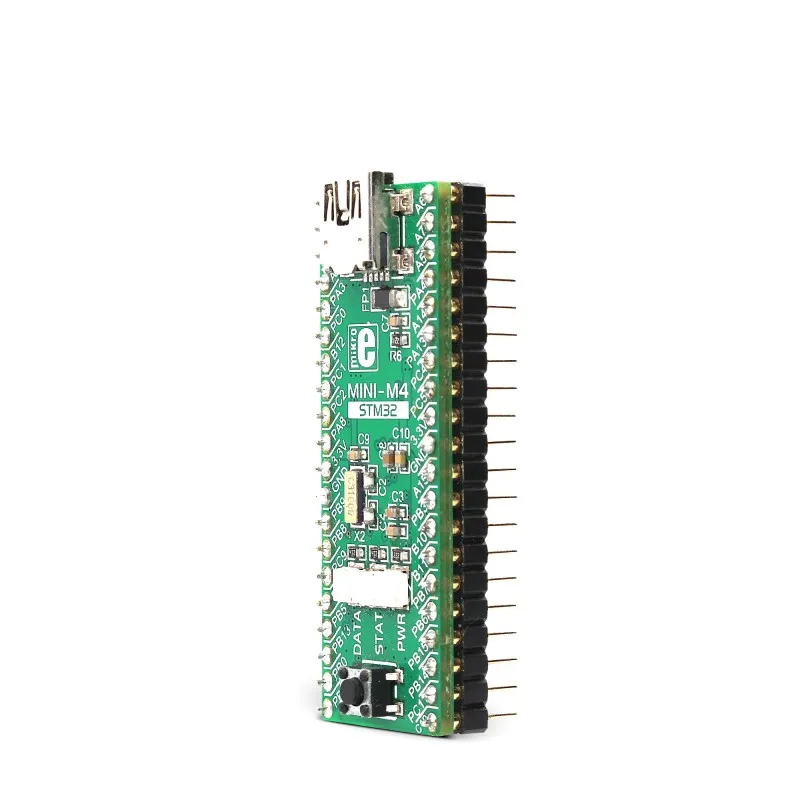

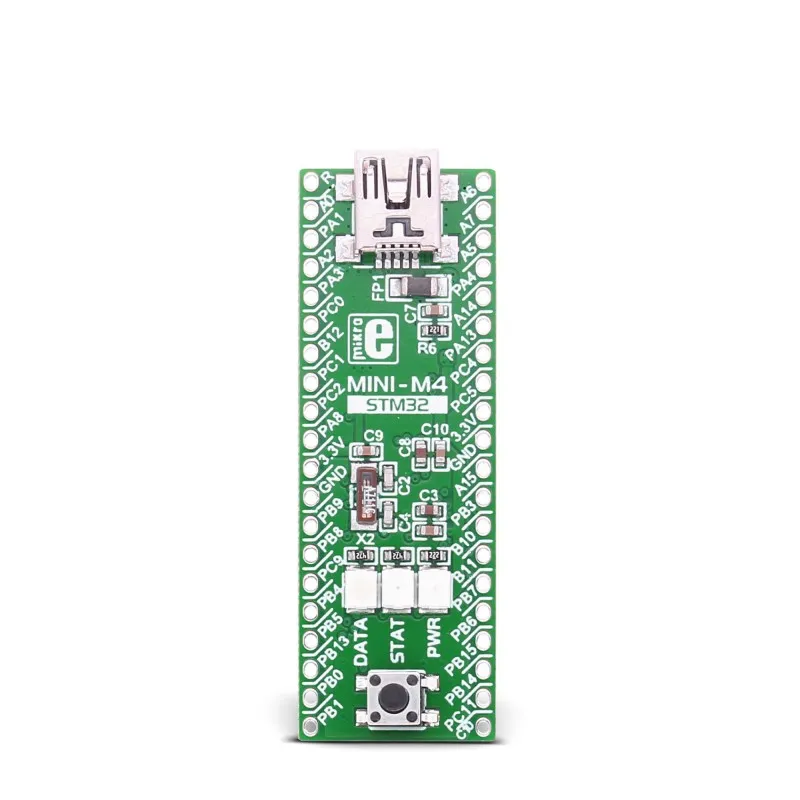

Board can be used as a DIP40 substitute for PIC16 and PIC18 microcontrollers working on 3.3V, thus adding exponentially more power to your target device.
Key features

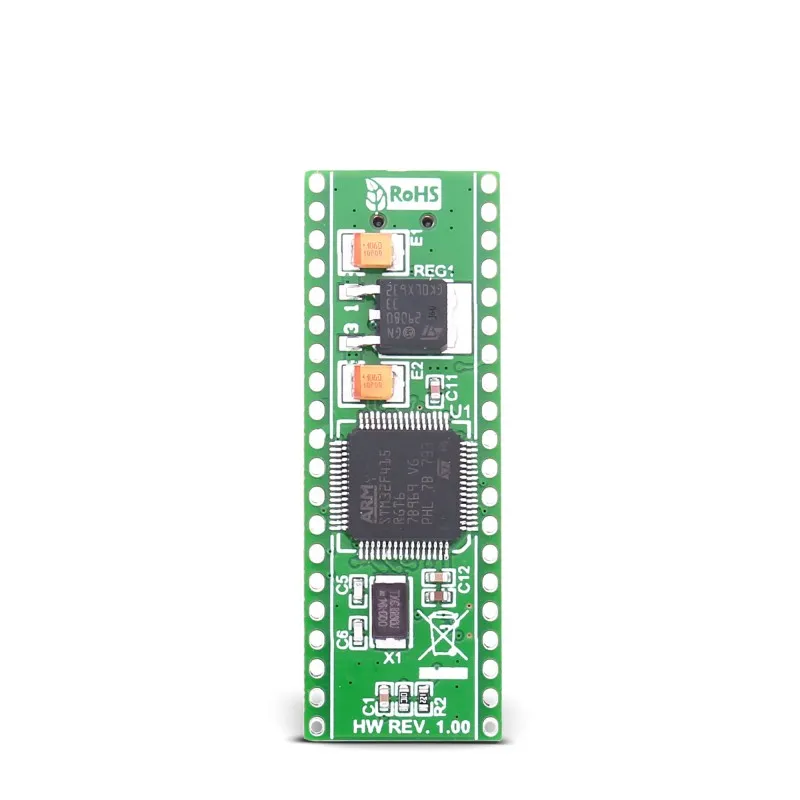

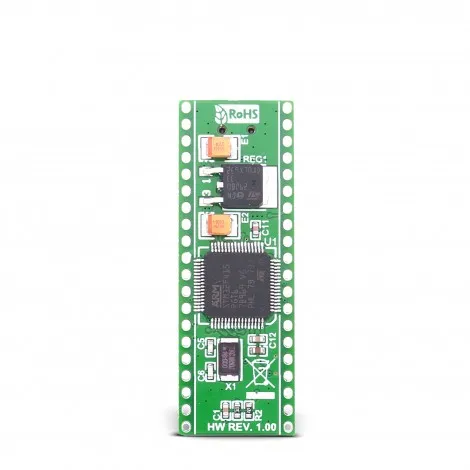

- STM32F415RG, ARM 32-bit Cortex™-M4 CPU with FPU, 1MB Flash, 192 4K RAM. 0-wait state execution from Flash memory, frequency up to 168MHz, and DSP instructions
- USB 2.0 On-The-Go support Signal LEDs, Crystal oscillator and Reset Button on board
- Supports CAN communication
Operating Voltage
Board operates on 3.3V power supply only. Dedicated voltage regulator enables the board to be powered directly from on-board USB connector.
Key Benefits
- Pin compatible with PIC16F887 and PIC18(L)F45K20
- Comes preprogrammed with USB bootloader

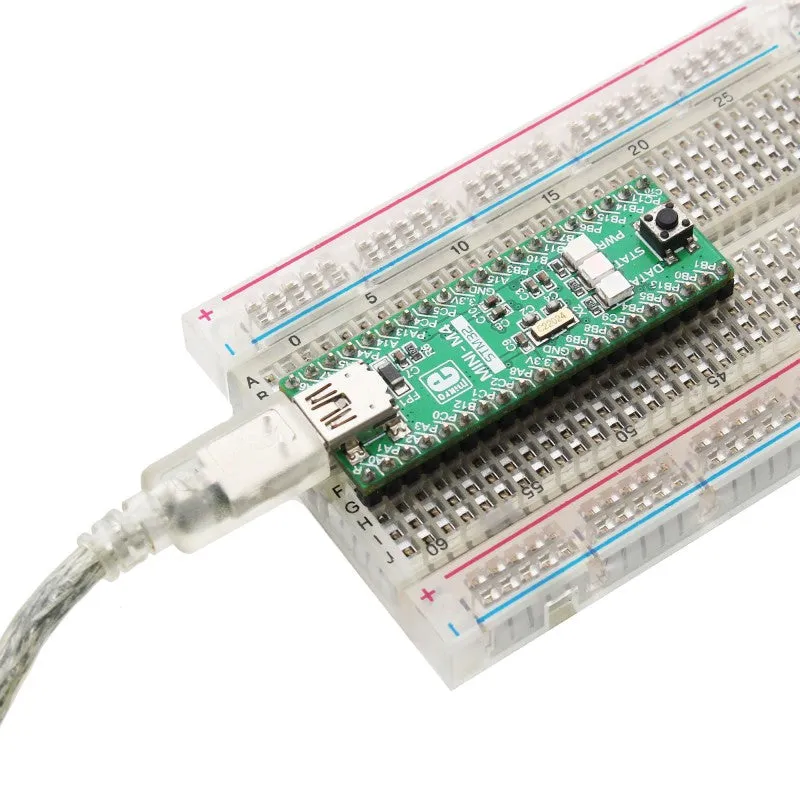

- Perfectly fits into DIP40 socket
- Fully supported in mikroE ARM compilers
