Product Details
＋

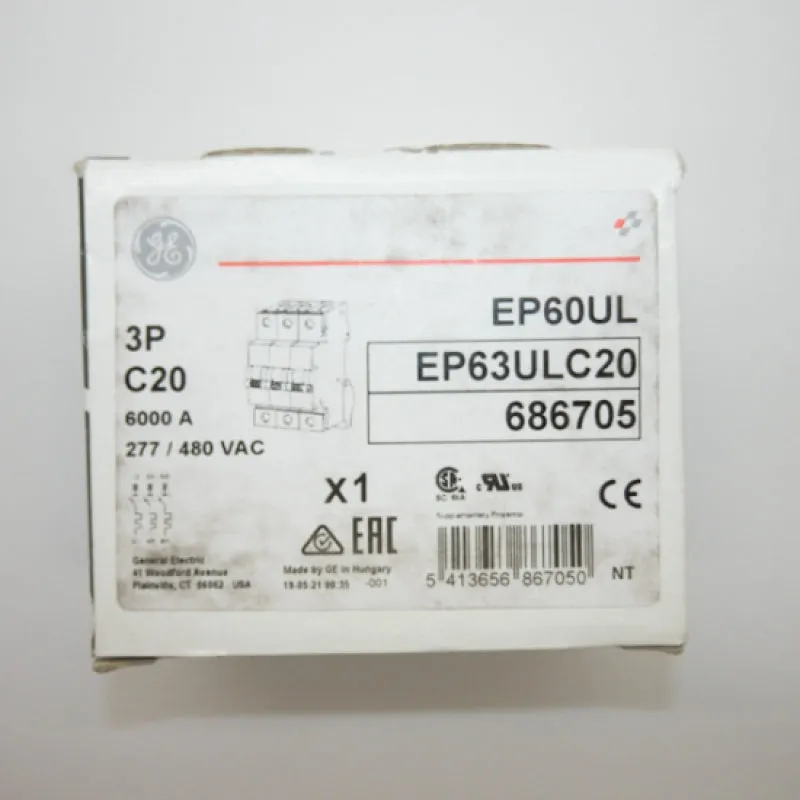

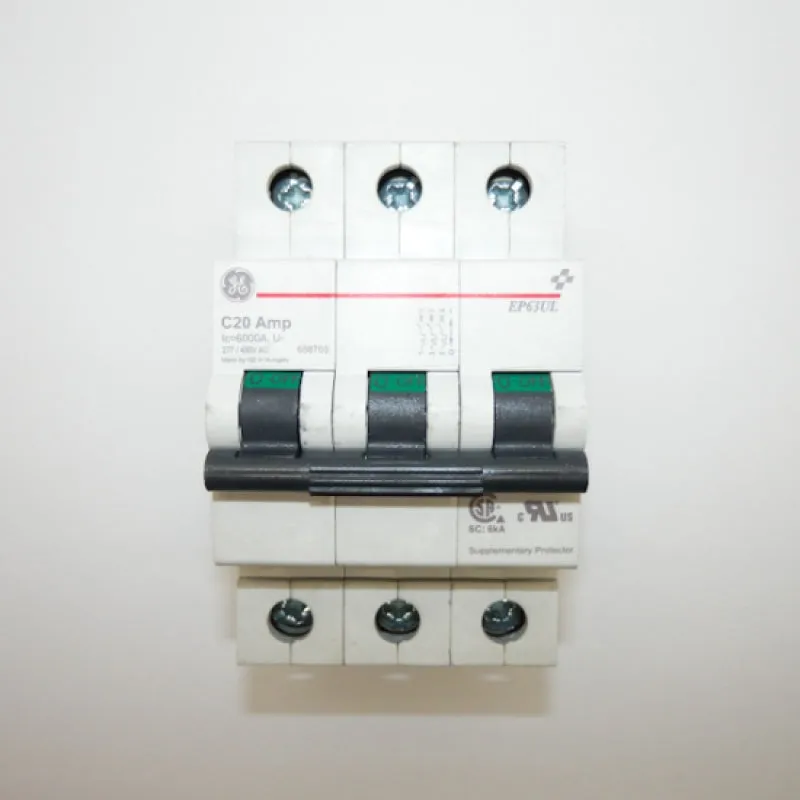

GE 20A 3P Miniature Circuit Breaker EP63ULC20
Specifications:
- Actuator Type: Toggle
- Characteristic: C Curve
- Current Rating: 20 A
- Family Name: ElfaPlus Family
- Mounting Type: DIN Rail Mount
- Number of Poles: 3 Pole
- Series: EP60 UL Series
Series Features:
- New modular compact standard 35mm DIN-rail mount UL MCBs
- Complete range of UL489 and UL1077 miniature circuit breakers up to 63A
- Standard rating of 10kA at 480Y/277 Vac and 240/120Vac
- Suitable for branch circuit device protection
- Module width of only 0.71 in (18 mm) per pole
- Contact position indication (red/green)
- Possibility for locking the toggle in OFF position
- Complete range of UL1077 auxiliaries, shunt trips and undervoltage
- Bifunctional (wires & bars) strong terminals. UL489 busbars available in the range.
- The UL MCB range is completed with ground fault devices, surge protective devices and net analyzers.
