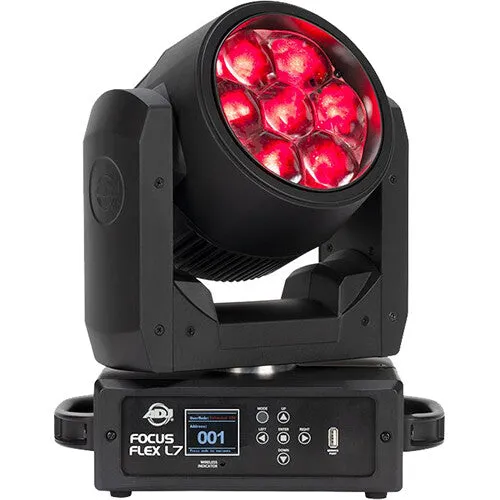

Lighting designers in search of a fixture with creative flexibility for generating vibrant washes, punchy beams, and eye-catching pixel effects should look no further than the American DJ Focus Flex L7, a compact and versatile moving head luminaire, well suited for event production and rental houses, as well as permanent installations in concert halls, theatres, nightclubs, and churches.
The Focus Flex L7 is powered by seven 40W 4-in-1 (red, green, blue, lime) color-mixing LEDs, each of which can be controlled independently. It offers a motorized zoom with a variable field angle of 6 to 57°. With various DMX mode options appropriate for different applications, the Focus Flex L7 offers virtual background and foreground color-wheel control and virtual CMY color mixing, as well as a choice of seven DMX modes. The Focus Flex includes a locking power cord, Omega brackets, a safety cable, and a WiFLY antenna.
SPECIFICATIONS
- Moving head pixel wash with pixel effects
- Electronic strobe/dimmer
- Pan/tilt: 540 to 630º / 265º
- Motorized zoom
- Beam angle: 4 to 35°
- Field angle: 6 to 55°
- Color-calibrated pixels, so units match from batch to batch
- Virtual CMY DMX control modes
- Virtual foreground and background color wheel control
- Selectable led refresh rates (900 Hz to 25 kHz)
- Selectable dim modes: Standard, Stage, TV, Architectural, Theatre, Stage 2, and user-settable dim speed (0.1 to 10 sec)
- Four dim curves: Square, Linear, Inv. Square, and S. Curve
- 0 to 100% smooth dimming
- Various strobe speeds
- USB firmware update port
- Fan cooled
- Antenna for WiFLY EXR wireless DMX
- Virtual CMY DMX control modes
- Virtual foreground and background color wheel control
- Built-in color macros
- 2700 to 10,000K liner-white color control
- Color temperature presets: 2700, 3000, 3200, 4000, 4500, 5000, 5600, 6500, 8000, and 10,000K
- Seven DMX modes: 16 / 25 / 34 / 42 / 50 / 25 (CMY) / 28 (CMY) channels
- Color LCD with a 6-button function menu
- Control mode: DMX512 or internal programs
- Built-in effect pixel programs with speed and fade control
- Various strobe speeds
- USB firmware update port
- Wired digital communication network
- RDM (remote device management)
- WiFLY EXR Wireless DMX built-in (2500' line of sight)
| Fixture Type | Moving Head |
| Light Source | 7 x Color LED - 40 W |
| Light Source Life Expectancy | 50,000 Hours |
| Colors | Red Green Blue Lime |
| Pixel Configuration | 7 x Zones |
| Photometrics | 4°: 1331.2 fc / 14,329 Lux at 16.4' / 5 m 35°: 34.1 fc / 367 Lux at 16.4' / 5 m |
| Color Temperature | 2700 to 10,000K |
| Lumen Output | 3500 Lumens |
| Shutter / Strobe | Electronic |
| Zoom Adjustment | Motorized, 6 to 55° |
| Dimming | Electronic, 0 to 100% with 6 Dimmer Modes |
| Operating Modes | DMX, Program |
| Macros / Programs | 64 x Color Macro |
| Effects | Shapes (Variable Speed) Pulse (Individual Pixel Control) |
| Gobos | None |
| Color Accuracy Index | CRI: 83.4 |
| Refresh Rate | 900 Hz to 25,000 Hz (Adjustable) |
| Tilt Ranges | 260° |
| Pan/Tilt Inversion | Yes |
| Movement Resolution | 8 / 16-Bit |
| Control Protocols | DMX512, RDM, WiFly |
| DMX Channel Modes | 7 Mode(s): 16 / 25a / 25b / 28 / 34 / 42 / 50-Channel |
| Display / Controls | LCD / 6-Button |
| Remote Control | WiFly (with Optional Equipment) |
| Mobile App Compatible | No *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |

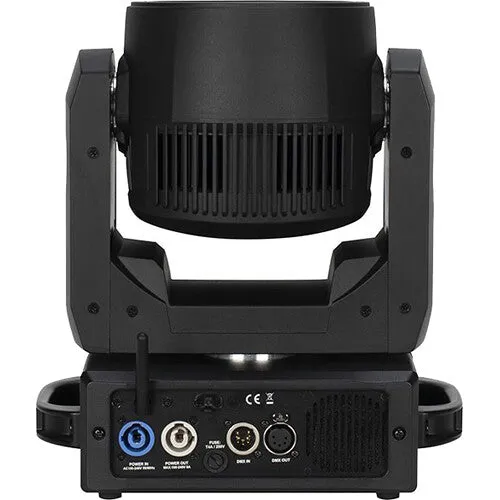

| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Wireless Range | WiFly: 2296.6' / 700 m (with Optional Equipment) |
| AC Input Power | 90 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x powerCON Output: 1 x Proprietary |
| Fuse | T 10 A |
| Power / Current Consumption | 120 VAC: 337 W |
| Power Linking | 2 Units at 110 VAC 6 Units at 220 VAC |
| IP Rating | IP20 |
| Mounting | Omega Bracket |
| Included Accessories | 1 x Power Cable 1 x Safety Cable |
| Duty Cycle | None |
| Exterior Color | Black |
| Cooling | Fan (Variable Speed) |
| Certifications | CE, ETL *as per Manufacturer |
| Dimensions | 13.7 x 9.8 x 7" / 34.8 x 24.9 x 17.8 cm |
| Weight | 15.5 lb / 7 kg |
