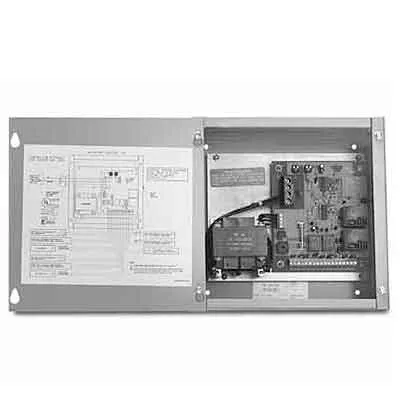

Accentra 782 Power Controller 10 amp, for One or Two 6100 P or 7100 P Accentra Electric Latch Retraction Exit Devices

The Accentra 782 Controller Power Supply is required for electric latch retraction and is designed to control one or two electric latch retraction "P" exit devices. The Accentra 782 is required for use with the "P" retraction option. Using any other power supply with the "P" option voids the warranty of the device.

Features

-Two control inputs. Accepts normally closed dry contacts for device activation from a key switch, push button, access control, or fire alarm system.

- Two normally open control outputs for automatic door operators 7100P or 6100P Accentra Exit Devices • Two “P” device outputs

-Fire Alarm Interface input • 24VDC output for audible or LEDS .25 AMP Electrical Specifications

- 120 VAC 60Hz 750mA (max.) • Not available in 240V • 38-42 VDC output

-10 amp inrush

Technical Specifications
