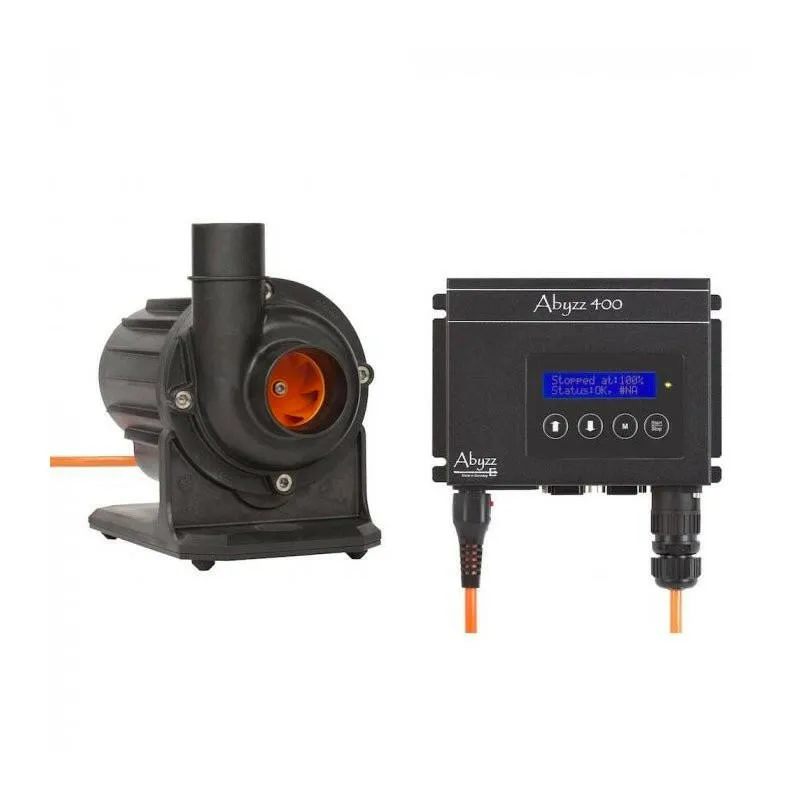

The innovative Abyzz A400 pump with its titaniumimpeller consists of powerful and programmablemenu-controlled electronics (driver) and asinusoidal, three-phase synchronous motor (pump).The efficiency factor of the motor is more than 90%,which, along with the fact that you can adjust thespeed to meet your performance requirements,makes it an energy-saving solution.The integrated bearing flushing provides optimumprotection against calcination and, in conjunctionwith the silicon carbide bearings and special hardmetal shaft, ensures low-maintenance operations.The materials used are designed to have a longlifetime and meet the highest requirements andquality standards. This product was developed andmanufactured in Germany by venotec. „Made in Germany“

Special features

- Variable speed range (0 - 100%)
- Programmable control system (e.g. wave andrandom modes)
- Comprehensive safety functions (e.g. dry run,temperature, and overcurrent protection)
- Soft startup
- Bus-enabled interface for peripheral devices
- Lockable plug contacts
- Low-noise operation
- Choice of 3m or 10m cable length

Technical Data
The pump pipes can be immersed or in a dryposition.
Please note that this pump is not selfpriming.
Maximum flow rate : 23.500 l/hRated flow rate : 18.600 l/hDischarge flow speed : max. 7,5m/s : nom. 6,4m/sDelivery height : max. 9,4mRated input : 4...400WOperating voltage : 230V~, 50...60Hz
Ambient temperature : 2°C... 40°C
Maximum operating pressure : 1,2 barMaximum immersion depth : 2 MeterPump cable length : 3m oder 10mInlet/outlet connections : 50mm/40mm(suitable for PVC/AVB adhesive fittings)
