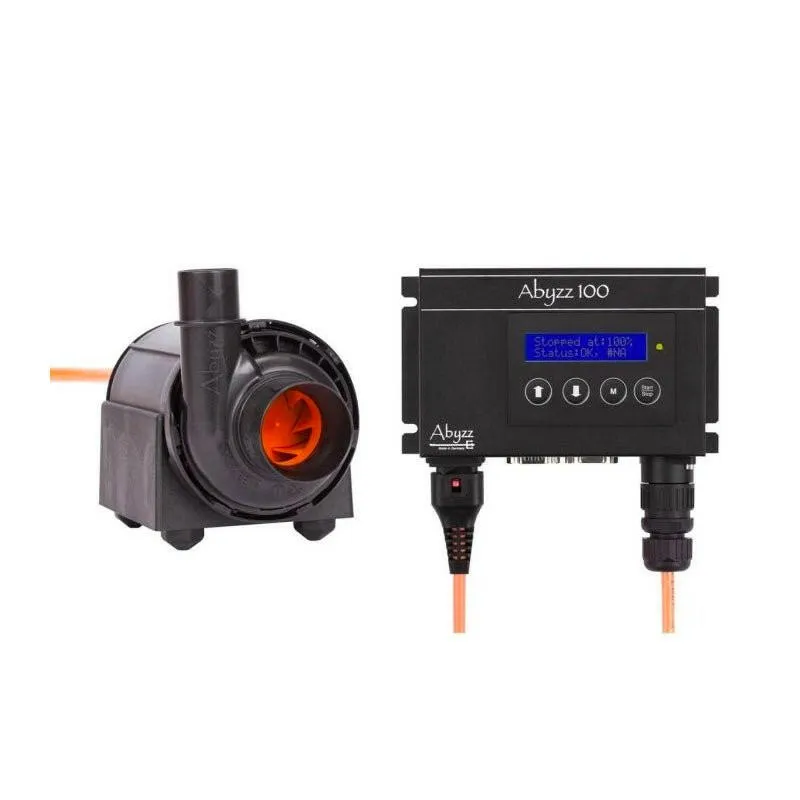

The Abyzz A100 pump provides all the quality andfeatures of the bigger Abyzz pumps in a verycompact and powerful pump. With its menucontrolled driver and the high efficiency motorrunning on a safety voltage off only 12V it can beused in all areas of application.The integrated bearing flushing provides optimumprotection against calcination and, in conjunctionwith the silicon carbide bearings and special hardmetal shaft, ensures low-maintenance operations.The materials used are designed to have a longlifetime and meet the highest requirements andquality standards. This product was developed andmanufactured in Germany by venotec. „Made in Germany“

Special features

- Variable speed range (0 - 100%)
- MCFS® (MenuControlledFlowSequencer) forrandom, wave etc.
- BOOSTMODE® integrated
- Comprehensive safety functions (e.g. dry run,temperature, and overcurrent protection)
- Soft startup- Bus-enabled interface for peripheral devices
- Lockable plug contacts-
 Low-noise operation
- Motorbetriebsspannung 12V
- Removable motor stand

Technical data

The pump pipes can be immersed or in a dryposition.
Please note that this pump is not selfpriming.
Maximum flow rate : 8.500 l/h
Rated flow rate : 7.300 l/h
Delivery height : max. 6,0mRated input : 5...100W
Operating voltage : 90...240V~ 50...60Hz
Ambient temperature : 2°C... 40°C
Maximum operating pressure : 1,2 bar
Maximum immersion depth : 2 MeterPump cable length : 2mInlet/outlet connections : 40mm/25mm(suitable for PVC/AVB adhesive fittings)
